RudderStack makes it easier for you to add more nodes to your Kubernetes cluster, to process the events in a timely and effective manner. This guide shows you how to effectively configure your Helm charts to trigger a horizontal scale up/down, based on the version of RudderStack you are using.

RudderStack Open-source Version

Each RudderStack node consists of a backend pod and a PostgreSQL pod. In case a RudderStack cluster is not able to process the events, it is advisable to add more more nodes to it. By changing the backendReplicaCount in the Helm configuration, you can trigger horizontal scale up/down. If you set this value to any positive number, helm charts will create as many RudderStack nodes.

The values.yaml file can be found here.

There are, however, a couple of challenges in scaling up or down this way.

Event Ordering

In a single-node cluster, all events are routed to the same RudderStack node. This guarantees the ordering of all events it has received for a given user. In case of a multi-node cluster, since the events of a same user can go to different nodes, the event ordering is not guaranteed by the cluster.

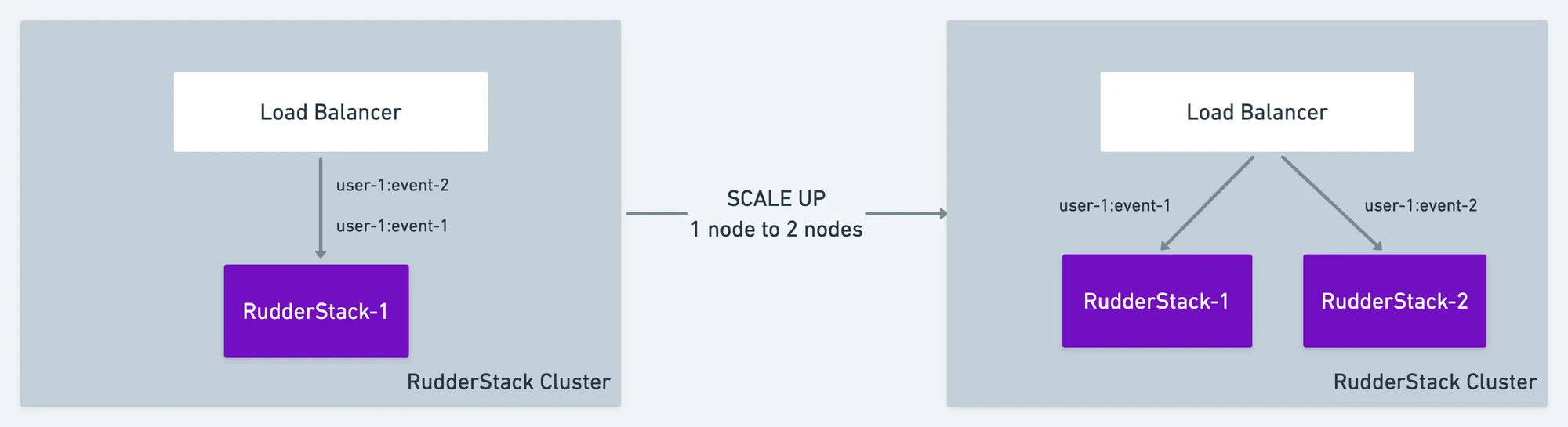

image  17 Event Ordering While Scaling Up from 1 Node to 2 Nodes

Scale Down

If you scale down, all the pending events in the terminated node will not be delivered to the destination. You will need to make sure that all the events in a node are drained before terminating it.

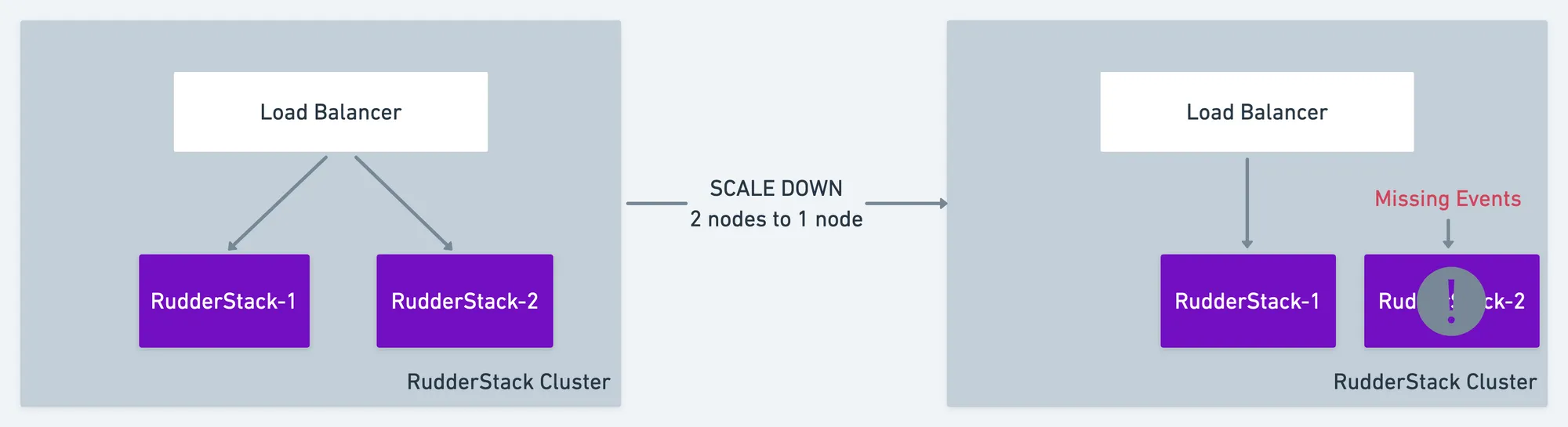

image  65 Scaling Down from 2 Nodes to 1 Node
To understand how RudderStack handles hardware failures and guarantees High Availability, please go through our High Availability guide.

RudderStack Enterprise Version

The Enterprise version of RudderStack makes horizontal scaling seamless, while maintaining the event ordering and guaranteeing the delivery of all events.

Event Ordering

RudderStack Enterprise has a proxy service that implements a routing algorithm. It forwards a given set of user events to the same RudderStack node every time. Each node then guarantees the event ordering while delivering to the specified destinations. This proxy service is highly available and scalable.

image  27 Event Ordering in RudderStack Enterprise

Scale Down

RudderStack Enterprise includes a separate process named Jobs DB Migrator. This process is responsible for moving all pending events from the existing nodes to the new nodes after scaling up or down. It makes sure all the events are migrated to the new nodes and the event ordering is maintained during and after the migration process.

image  55 Scaling Down in RudderStack Enterprise

Contact us

For more information on the topics covered on this page, email us or start a conversation in our Slack community.
