PostgreSQL Reverse ETL Source

PostgreSQL is an enterprise-grade, open source database management system. Many companies use PostgreSQL as a low-cost data warehousing solution to deliver efficient analytics and user insights.

RudderStack supports PostgreSQL as a data source from which you can ingest data and route it to your desired downstream destinations.

Grant permissions

Before you set up PostgreSQL as a source, you must grant certain permissions on your PostgreSQL warehouse for RudderStack to access data from it.

Run the queries listed in the following sections in the exact order to grant the required permissions:

Step 1: Create user

Create a new user RUDDER with a password <strong_unique_password> in PostgreSQL:

CREATE USER RUDDER WITH PASSWORD '<strong_unique_password>';

Step 2: Create RudderStack schema and grant permissions

1. Create a dedicated schema _rudderstack.

CREATE SCHEMA "_rudderstack";

The _rudderstack schema stores Reverse ETL sync state, snapshots, and related tables. Do not change this name.

See _rudderstack Schema Reference for more details.

2. Grant full access to the schema _rudderstack for the user RUDDER.

GRANT ALL ON SCHEMA "_rudderstack" TO RUDDER;

3. Grant full access to all objects in the schema _rudderstack for the user RUDDER.

GRANT ALL PRIVILEGES ON ALL TABLES IN SCHEMA "_rudderstack" TO RUDDER;

Step 3: Grant permissions on schema and table

1. To let the user RUDDER look up objects within the schema <YOUR_SCHEMA>, run the command below.

GRANT USAGE ON SCHEMA "<YOUR_SCHEMA>" TO RUDDER;

2. Grant access to the user RUDDER to read data from the required table/view:

GRANT SELECT ON TABLE "<YOUR_SCHEMA>"."<YOUR_TABLE>" TO RUDDER;

Replace <YOUR_SCHEMA> and <YOUR_TABLE> with the exact names of your PostgreSQL schema and table, respectively.

Optional commands

Run the following commands only if you’re okay with RudderStack being able to access the data in all current or future tables residing within your specified schema.

• To allow the user RUDDER read the data from all the tables in the schema <YOUR_SCHEMA>:

GRANT SELECT ON ALL TABLES IN SCHEMA "<YOUR_SCHEMA>" TO RUDDER;

• To allow the user RUDDER to read data from all future tables created by the user creator in your schema:

ALTER DEFAULT PRIVILEGES for user creator IN SCHEMA "<YOUR_SCHEMA>" GRANT SELECT ON TABLES TO RUDDER;

Replace <YOUR_SCHEMA> with the exact name of your PostgreSQL schema.

Set up PostgreSQL source in RudderStack

1. Log in to your RudderStack dashboard.
2. On the Connections page, click Add source.

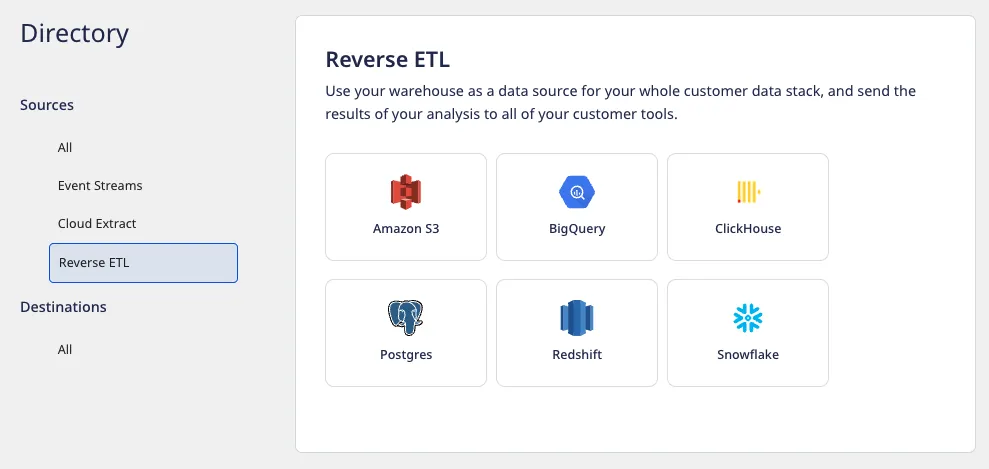

3. Under Sources, click Reverse ETL and select PostgreSQL.

Configure warehouse credentials

You can choose to proceed with your existing warehouse credentials if you have configured them in the RudderStack dashboard previously. Otherwise, click Add new credentials to add new credentials for your warehouse.

• Host: Enter the host name of your PostgreSQL instance.
• Database: Enter the database name of your PostgreSQL instance from where RudderStack ingests the data.
• User: Enter the user name of your PostgreSQL instance.
• Password: Enter the password for the above user.
• SSL Mode: Select the SSL mode as disable or require depending on how RudderStack should connect to your PostgreSQL instance.

Click the Verify button on the top right. RudderStack will then verify and validate your credentials. Once verified, click Continue to proceed.

Specify name and source type

• Source name: Assign a name to uniquely identify the source in the RudderStack dashboard.
• Select your source type: RudderStack lets you set up a Reverse ETL source from a warehouse Table or Model.

Use warehouse table as source

Under Select your source type, choose Table and specify the below fields:

• Schema: Select the warehouse schema from the dropdown.
• Table: Choose the required table from which RudderStack syncs the data.
• Primary key: Select the column from the above table that uniquely identifies your records in the warehouse.

RudderStack uses the primary key column for diffing in case of incremental syncs. You can generate it by:

• Generating your table with a primary key, OR
• Creating a table view

You can use a composite key in cases where one column cannot be considered as a primary key. For example, you can a declare a composite key of user_id and timestamp by creating a view on your warehouse table.

Finally, review and complete your source setup.

Use model as source

Under Select your source type, choose Model and click Continue.

To configure a model as source:

1. Enter an optional description and specify the custom SQL query in Query section.
2. Click Run Query to fetch the data preview.
3. Select the Primary key to use a column that uniquely identifies your warehouse records.

You can set a primary key only after you run the SQL query successfully using the Run Query option.

RudderStack uses the primary key column for diffing in case of incremental syncs. You can generate it by:

• Generating your table with a primary key, OR
• Creating a table view

You can use a composite key in cases where one column cannot be considered as a primary key. For example, you can a declare a composite key of user_id and timestamp in SQL query of the model.

Finally, review and complete your source setup.

Review and complete setup

To make any changes to the warehouse credentials or source configuration, click the edit icon present next to those sections.

Review your configuration and click Create source to complete the setup.

Connect destination

To start using the newly-created source, you can connect it to:

• A new destination, or
• An existing destination that is not already connected to any other source.

To connect to a destination later, click Done on the top right:

You will then be redirected to the Overview page of the source where you will see the option of connecting it to a new or existing destination.

See Set up Reverse ETL Connection section for more information.

Update source configuration and settings

Go to the Configuration tab of your Reverse ETL source to update the configuration depending on your source type:

You cannot change the source type on this page.

The below table lists the options you can update:

After updating the configuration, the next sync will be a full sync.

Go to the Settings tab to:

• Get your source ID.
• Change your warehouse credentials.
• Set up custom alerts for your Reverse ETL source.
• Delete the source permanently.

You cannot delete a source that is connected to any destination.

IPs to be allowlisted

This section is applicable if you’re setting up your PostgreSQL source on a VPN or VPC and you want to enable network access to RudderStack.

To enable network access to RudderStack, allowlist the following RudderStack IPs depending on your region and RudderStack plan:

All the outbound traffic is routed through these RudderStack IPs.

FAQ

What are the SSL mode options when setting up the PostgreSQL source in RudderStack?

When setting up a PostgreSQL source, RudderStack provides the following two SSL options:

• disable: SSL mode is disabled when you select this option. Use it in cases where security is not an issue and you don’t want any encryption overhead.
• require: When you select this option, your data is encrypted and sent to RudderStack. Use it in cases where security is important and you can deal with the resulting encryption overhead.

Is SSH tunneling supported for PostgreSQL when using it as a Reverse ETL source?

RudderStack does not support SSH tunneling for PostgreSQL as a Reverse ETL source.

What do the three validations under Verifying Credentials imply?

When setting up a Reverse ETL source, you will see the following three validations under the Verifying Credentials option once you proceed after entering the warehouse credentials:

These options are explained below:

• Verifying Connection: This option indicates that RudderStack is trying to connect to the warehouse with the provided warehouse credentials.

If this option gives an error, it means that one or more fields specified in the warehouse credentials are incorrect. Verify your credentials in this case.

• Able to List Schema: This option checks if RudderStack is able to fetch all schema details by using the provided credentials.
• Able to Access RudderStack Schema: This option implies that RudderStack is able to access the _rudderstack schema you have created by running all commands in the User Permissions section.

If this option gives an error, verify if you have successfully created the _rudderstack schema and given RudderStack the required permissions to access it.
