Visual Data Mapper

Map your warehouse columns to destination tables with our visual data mapper.

The Visual Data Mapper (VDM) offers an intuitive UI to map your warehouse columns to specific destination fields. This is useful especially when mapping your warehouse data to custom fields defined in your destination.

success
To use this feature, you can use a Reverse ETL source and then connect it to a VDM-supported destination.

Using the Visual Data Mapper

To use the Visual Data Mapper, follow these steps:

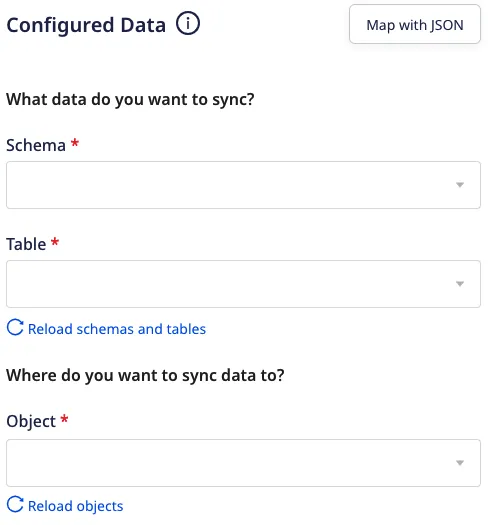

  1. Set up a Reverse ETL source and connect it to a destination. You should then see the following screen:
VDM model options
info
By default, Visual Data Mapping is enabled for all VDM-supported destinations. To configure the data via JSON, click the Map with JSON button.
  1. Choose the source Model or Schema + Table from where you want RudderStack to import and sync the data.
success
Upon selection, RudderStack automatically loads the relevant resources. If you have added a new model or warehouse table during this configuration process, click Reload models/Reload schemas and tables to fetch the latest resources.

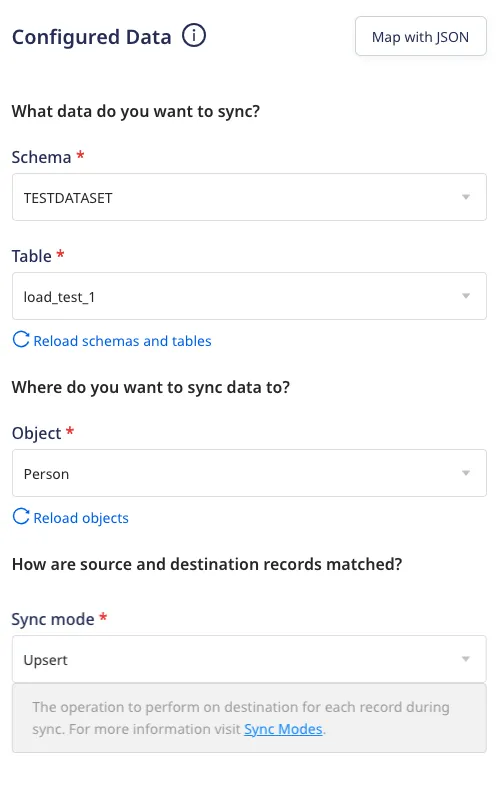

  1. Then, select the destination Object where you want to sync the data. An example Customer.io destination is shown below:
Map another field
success
RudderStack automatically loads all the relevant destination objects. If you have added a new destination object during this configuration process, click Reload objects to get all the latest objects.
danger
RudderStack does not support objects that do not have any fields or a unique user identifier.
  1. Next, select the sync mode that RudderStack uses to sync your data.
info
RudderStack supports two modes for syncing your data - Upsert and Mirror. For more information on these modes, refer to the Sync Modes guide.

Choosing the identifier

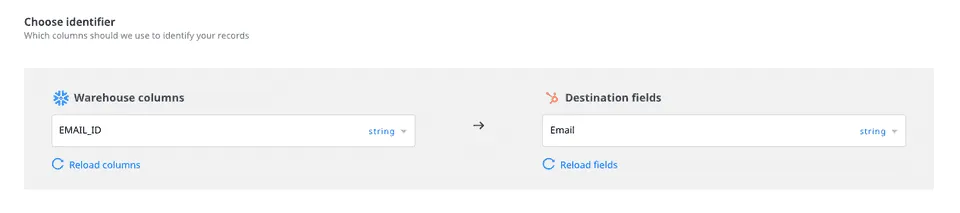

In the Choose Identifier section, choose a warehouse column and destination field to map your records from the source to the destination. You can choose any column from the dropdown which will act as a unique identifier. An example is shown below:

Map another field
success
The identifier (Map with Visualizer) or user_id/anonymous_id (Map with JSON) fields must have unique values in order to successfully sync the data to the destination. The records containing duplicate identifier values will fail to sync. For example, if you have chosen name as the identifier and it contains more than one values as ‘Alex’, the duplicate record will fail to sync.

Mapping the fields

In the Map Fields section, you can configure the source-destination field mappings by following these steps:

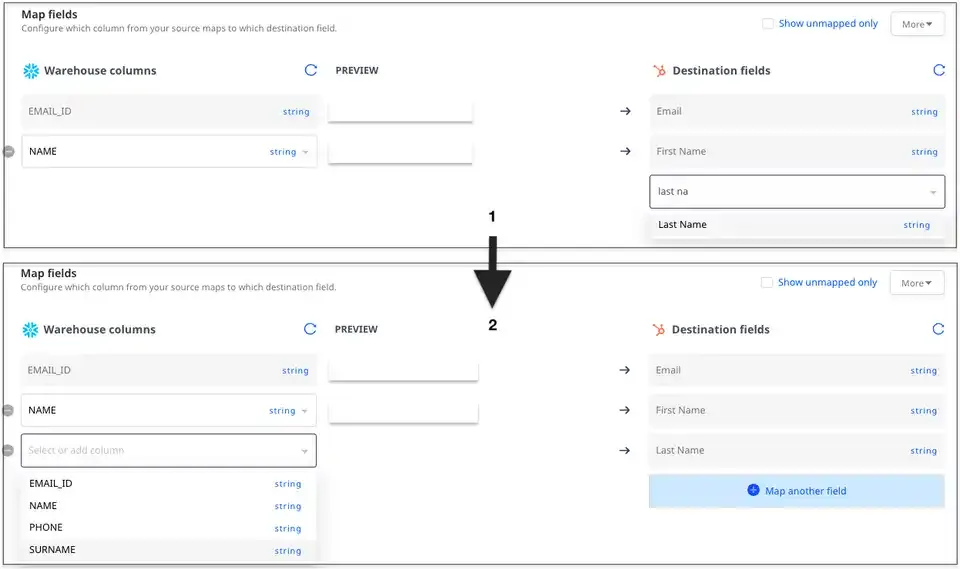

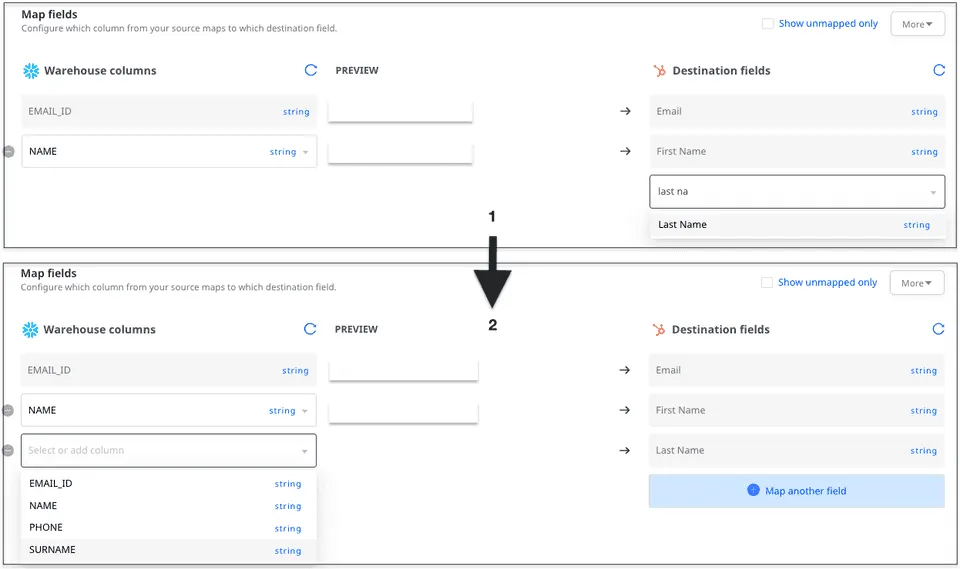

  1. Click the Map another field option. Select the Destination field from the dropdown. Then, select the Warehouse column to map this field.
Map another field
success
RudderStack gives you full visibility into the name and type of the fields that you are mapping.

Mandatory mappings

When sending events to some objects, there are some required fields that need to be mapped. These fields cannot be removed from the mappings. For example, in case of the Salesforce Account object, Account Name is a required field, as seen in the following image:

Map another field

Mapping fields of different type/format

In case you are mapping fields with different data types or formats, you can use the Transformations feature to do type conversion before sending the events data.

For example, RudderStack lets you map the warehouse column Phone of type string to a destination field Company ID of type float . You can then add a transformation at the destination end to do this type conversion to ensure there is no mismatch.

Map another field

Creating a custom destination field

RudderStack lets you create a custom destination field and map it to a warehouse column by following the below steps:

  1. Click the Map another field option.
  2. Type the name of the custom destination field that you want to create, as shown:
Map another field
  1. Finally, click Create.

Once you have mapped all source columns to the destination fields, click Next to complete the destination configuration.

Syncing data to custom Salesforce objects

RudderStack does not support creating new custom fields for the Salesforce destination using the above-mentioned steps.

However, you can still use the Visual Data Mapping feature to sync your data to the custom Salesforce objects by following the below steps:

  1. Log into your Salesforce dashboard.
  2. In the top navigation bar, click the Setup icon and go to Object Manager.
Salesforce custom object
  1. Then, go to Create > Custom Object.
  2. Enter the relevant details and click Save to finish the configuration.
warning
Make sure you select the Allow Search setting under the Search Status section, as shown below. Otherwise, the custom object will not be visible in the RudderStack dashboard.
Salesforce custom object

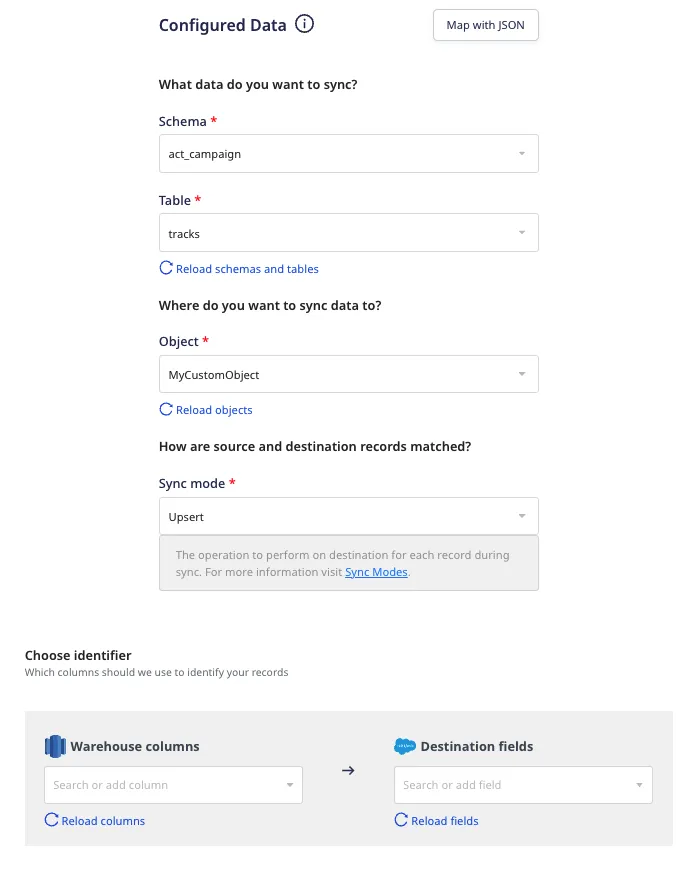

  1. In your RudderStack dashboard, click Reload objects under the Object field. Your newly created custom object should now be visible in this list. Select the object and map the relevant fields to sync your data.
Salesforce custom object
