How to Dynamically Configure Device Mode Destinations Beta

This guide explains how to dynamically configure device mode destinations using the RudderStack JavaScript SDK.

Overview

Managing destination configurations across thousands of websites can be challenging when relying solely on the RudderStack dashboard. The dynamic device mode destinations configuration feature lets you override destination-specific configuration values and toggle destination status directly at the instrumentation level when initializing the RudderStack JavaScript SDK.

This approach gives you granular, flexible control over your SDK behavior without needing to update configuration from the RudderStack dashboard for each website or application.

Prerequisites

• RudderStack JavaScript SDK v3.20.1 or later
• Valid write key and data plane URL
• Existing device mode destinations configured in your RudderStack dashboard

Override destination configuration

You can override specific configuration values for your destinations using the sourceConfigurationOverride option in the SDK’s load API.

Basic configuration override

rudderanalytics.load(<WRITE_KEY>, <DATA_PLANE_URL>, {
  sourceConfigurationOverride: {
    destinations: [
      {
        id: "<destination-id>",  // Destination ID for the Facebook Pixel destination
        config: {
          pixel_id: "new_pixel_id_value",
          project_key: "updated_project_key"
        }
      },
      {
        id: "<destination-id-1>",  // Destination ID for the Google Analytics 4 destination
        config: {
          measurement_id: "G-XXXXXXXXXX"
        }
      }
    ]
  }
});

See the Configuration merging strategy section for more information on how the SDK merges the configuration overrides with the source configuration from RudderStack.

Obtain the destination ID

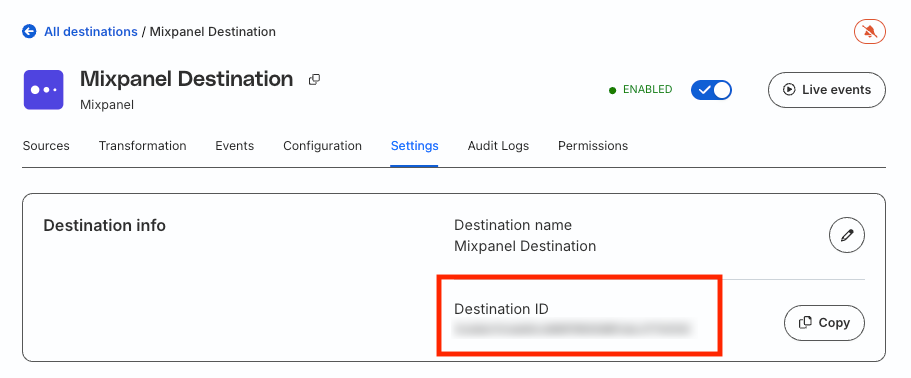

In the RudderStack dashboard, go to the Settings of the destination page to find the destination ID.

Determine the configuration fields to override

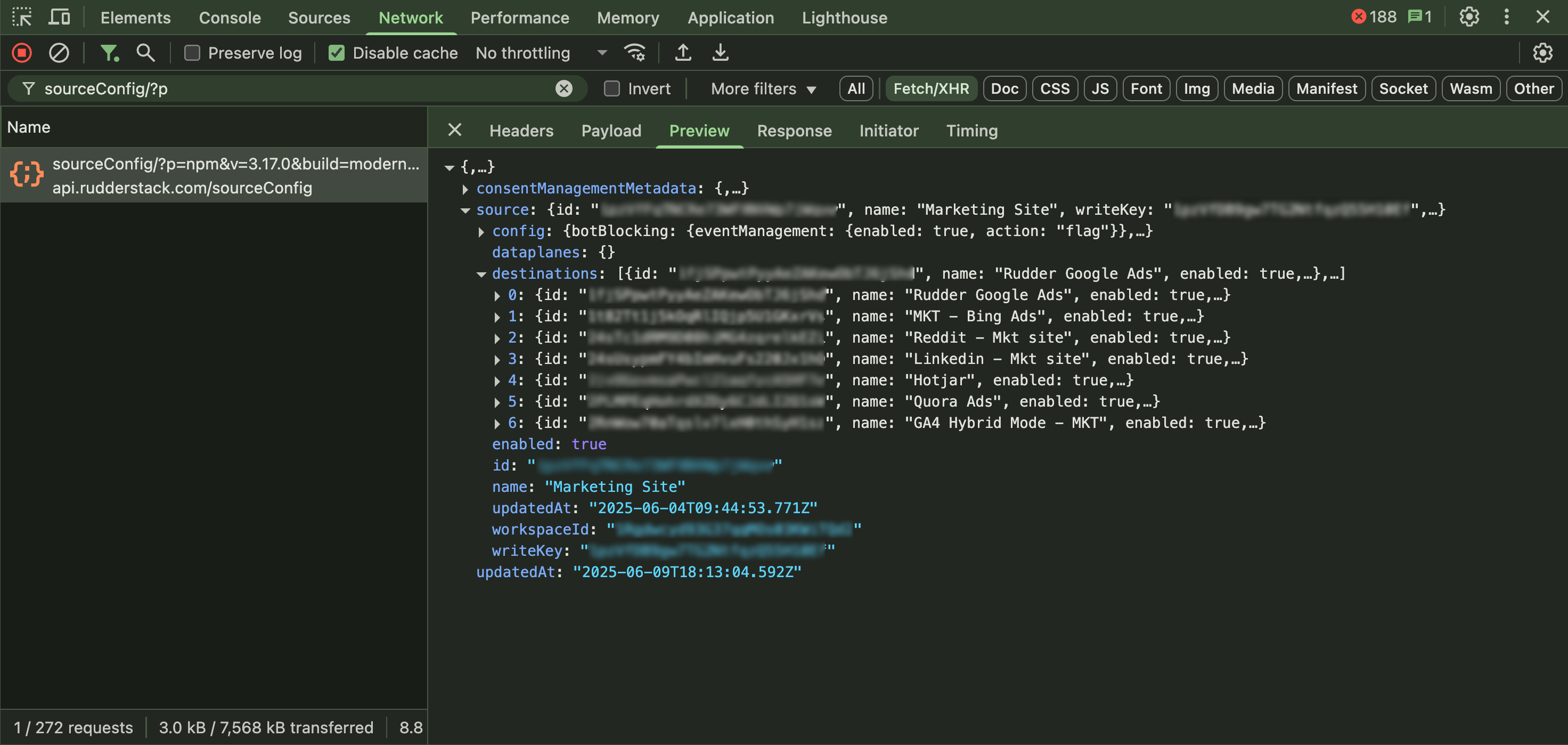

To identify the exact configuration fields available for override, inspect the source configuration response from RudderStack:

1. Open your browser’s developer tools.
2. Navigate to the Network tab.
3. Load your web page with the RudderStack SDK.
4. Look for the source configuration request (typically to sourceConfig endpoint).
5. Examine the response (destinations[index].config) to see the available configuration fields for each destination.

Configuration fields may change over time as destinations are updated. Always verify the current field names in the source configuration response before implementing the overrides.

Toggle destination status

You can programmatically enable or disable destinations using the Boolean parameter enabled in your override configuration.

rudderanalytics.load(<writeKey>, <dataPlaneUrl>, {
  sourceConfigurationOverride: {
    destinations: [
      {
        id: "<destination-id-1>",
        enabled: false  // Disables this destination
      },
      {
        id: "<destination-id-2>",
        enabled: true   // Enables this destination
      }
    ]
  }
});

RudderStack supports only true and false as values for the enabled field. It will ignore any other value, and the destination configuration will remain unchanged.

Combine configuration override and status toggle

You can also override destination configuration and toggle their status in a single operation.

The following example shows how to override configurations for the Google Analytics 4 and Facebook Pixel destinations.

rudderanalytics.load(<WRITE_KEY>, <DATA_PLANE_URL>, {
  sourceConfigurationOverride: {
    destinations: [
      {
        id: "<ga4-destination-id>", // Destination ID for GA 4 destination
        enabled: true,
        config: {
          measurement_id: "<ga4-new-measurement-id>"
        }
      },
      {
        id: "<fb-pixel-destination-id>", // Destination ID for the Facebook Pixel destination
        enabled: true,
        config: {
          pixel_id: "<new-pixel-id>"
        }
      }
    ]
  }
});

Verification

To verify your setup after implementing dynamic configuration:

• Check the browser console for any warnings about invalid destination IDs.
• Confirm that events are being sent to the correct destinations with updated configuration values.
• Use your destination’s analytics interface to verify that data is flowing as expected.

Best practices

• Use overrides only when necessary to maintain clear and traceable configuration behavior.
• Use exact property names as they appear in the source configuration response.
• Validate destination IDs before using them in configuration overrides.
• Do not override the required fields to null or undefined, otherwise you might encounter an error or unexpected behavior.
• Test configuration changes in a development environment first.

Troubleshooting

This section provides troubleshooting tips for common issues you may encounter when dynamically configuring device mode destinations.

Invalid destination ID warnings

If you see console warnings about invalid destination IDs:

• Verify that the destination ID in your override matches exactly with the destination ID present in the dashboard.
• Ensure the destination is configured as a device mode destination in the RudderStack dashboard.
• Verify that the destination corresponding to the destination ID is enabled.

Configuration not taking effect

If your configuration overrides aren’t working:

• Confirm you’re specifying the correct field names by inspecting the source configuration response.
• Verify that the data types of your override values match the expected format.
• Check that you’re only overriding the enabled and config fields, as other fields are not supported.

Events not reaching destinations

If events aren’t reaching your destinations after configuration:

• Make sure that you are not overriding the enabled field to false for destinations that should receive events.
• Verify that required configuration fields (like measurement IDs or pixel IDs) are correctly set.
• Check your destination’s debug or real-time view to confirm event delivery.

Limitations

• You can override the configuration for only the device mode destinations.
• You can override only the enabled and config fields per destination.

See also

• sourceConfigurationOverride parameter reference
