SIGNL4 Source

Ingest your event data from SIGNL4 into RudderStack.

3 minute read

SIGNL4 is a tool for instant mobile alerting. It generates real-time alerts to inform teams about any incidents and automatically delivers critical information to the right people at the right time.

RudderStack also supports SIGNL4 as a destination. Refer to the SIGNL4 destination documentation for more information.

Get started

Go to your RudderStack dashboard and click Add Source. From the list of Event Streams sources, select SIGNL4.
Assign a name to your source and click Continue.
Your SIGNL4 source is now configured. Go to the Settings tab of the source and note the Webhook URL:

Log in to your SIGNL4 account.

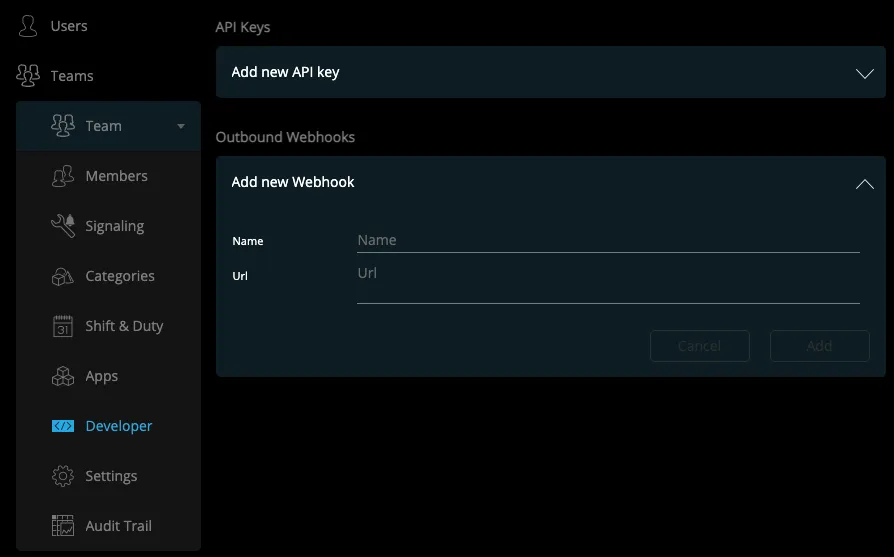

Go to Teams > Developer. Add a name and the Webhook URL under Outbound Webhooks:

Click Add.

Event transformation

SIGNL4 acts as a webhook source and ingests all events mentioned in SIGNL4 documentation.

Each event has a unique code present in the eventType property. The event name is mapped on the basis of this code, as explained below:

`eventType` code	Event name	SIGNL4 action
200	New Alert Created	New alert created in SIGNL4.
201	Alert Confirmed/Alert Resolved	Alert confirmed by the user. Alert resolved if the statusCode is 4.
202	Alert Escalated	Alert escalated when not confirmed in specified time.
203	Alert Annotated	Message/Annotation sent by the receiver for an alert.
300	Duty Period Started	Duty period started for a team.
301	Duty Period Ended	Duty period ended for a team.
302	Somebody Punched-In	When a team member comes on duty.
303	Somebody Punched-Out	When a team member goes off duty.
Any other	Alert Updated	Default behavior.

RudderStack ingests the SIGNL4 events after converting them into the RudderStack event format. It also maps the following properties from the SIGNL4 event payload to the RudderStack properties:

SIGNL4 property	RudderStack property
`eventType`	`event`
`eventRaisedUtc`	`originalTimestamp`
`user.id`	`context.externalId`
`id`	`messageId`
`team.id`	`properties.team.id`
`annotation.message`	`properties.annotation.message`
`annotation.id`	`properties.annotation.id`
`alert.eventId`	`properties.alert.eventId`
`alert.id`	`properties.alert.id`
`alert.externalEventId`	`properties.alert.externalEventId`
`alert.statusCode`	`properties.alert.statusCode`
`user.username`	`context.traits.name`
`user.mailaddress`	`context.traits.email`
`subscription.id`	`properties.subscription.id`
`alert.acknowledgedUserIds`	`properties.alert.acknowledgedUserIds`

How RudderStack creates the event payload

This section details how RudderStack receives the data from SIGNL4 source and creates the resulting payload.

A sample payload sent by SIGNL4 is shown below:

json

{
  "eventType": 203,
  "eventRaisedUtc": "2018-04-17T15:00:32Z",
  "subscription": {
    "id": "1578ebd9-0a27-44ab-bc8e-52cd7d32e81d"
  },
  "user": {
    "username": "Alex",
    "mailaddress": "alex@signl4.com",
    "id": "f0bd5063-9588-51cf-b3d9-94e5647dedc5"
  },
  "alert": {
    "statusCode": 0,
    "eventId": "2518783235949759942_fbc7b4a4-badd-47b8-9e1d-702fb6a1a0b2",
    "externalEventId": "INC091210",
    "id": "2518783235958846071_4e2dfab2-4717-42bc-8d37-8682402309c2"
  },
  "annotation": {
    "message": "OK, I'll take care about it.",
    "id": "2518783235661483318_99ebffe0-1b90-40ef-990a-fbd842484761"
  },
  "id": "141c0f88-7831-4d5e-b055-f6e83c269770"
}

RudderStack transforms the above payload into the following track payload:

json

{
  "type": "track",
  "event": "Alert Annotated",
  "context": {
    "library": {
      "name": "unknown",
      "version": "unknown"
    },
    "traits": {
      "name": "Alex",
      "email": "alex@signl4.com"
    },
    "externalId": [{
      "type": "signl4UserId",
      "id": "f0bd5063-9588-51cf-b3d9-94e5647dedc5",
    }],
    "integration": {
      "name": "SIGNL4"
    }
  },
  "messageId": "141c0f88-7831-4d5e-b055-f6e83c269770",
  "originalTimestamp": "2017-09-01T08:11:37.000Z",
  "properties": {
    "alert.statusCode": 0,
    "alert.eventId": "2518783235949759942_fbc7b4a4-badd-47b8-9e1d-702fb6a1a0b2",
    "alert.externalEventId": "INC091210",
    "alert.id": "2518783235958846071_4e2dfab2-4717-42bc-8d37-8682402309c2",
    "subscription.id": "183f8d00-3bb8-4636-9a8f-89d6af26374a",
    "annotation.id": "2518783235661483318_99ebffe0-1b90-40ef-990a-fbd842484761",
    "message": "OK, I'll take care of it."
  },
  "anonymousId": "6f0a3dc76a335860e17fa1d8ab779742e2ca",
  "integrations": {
    "SIGNL4": false
  }
}
