How to Create Measurement Plans Private Beta

A measurement plan captures what your team wants to track and carries it through a reviewed lifecycle — from a draft definition to instrumentation code proposed as pull requests. It is how you go from “we should be tracking this” to a concrete, reviewable change without writing the instrumentation by hand.

In the workspace sidebar, measurement plans appear under Plans.

Create a plan

1. Draft the plan: From chat, describe the tracking you want — the events and properties that should be captured. The agent saves and refines this as a measurement plan.

From chat, the agent can only save, update, and manage a plan — it can’t implement it.

2. Review and approve: A person reviews the plan and approves it. Nothing is implemented until this human-gated step.
3. Generate the pull requests: Approval alone doesn’t start implementation — a person clicks Generate PRs and confirms. This action launches the instrumentation agent and moves the plan to the implementation state.
4. The instrumentation agent opens pull requests: Once started, a background agent works each repository linked to the plan, writes the code changes, and opens a pull request for each one.
5. Review and merge: The pull requests sit in your normal code-review process. You can review and merge them like any other change.

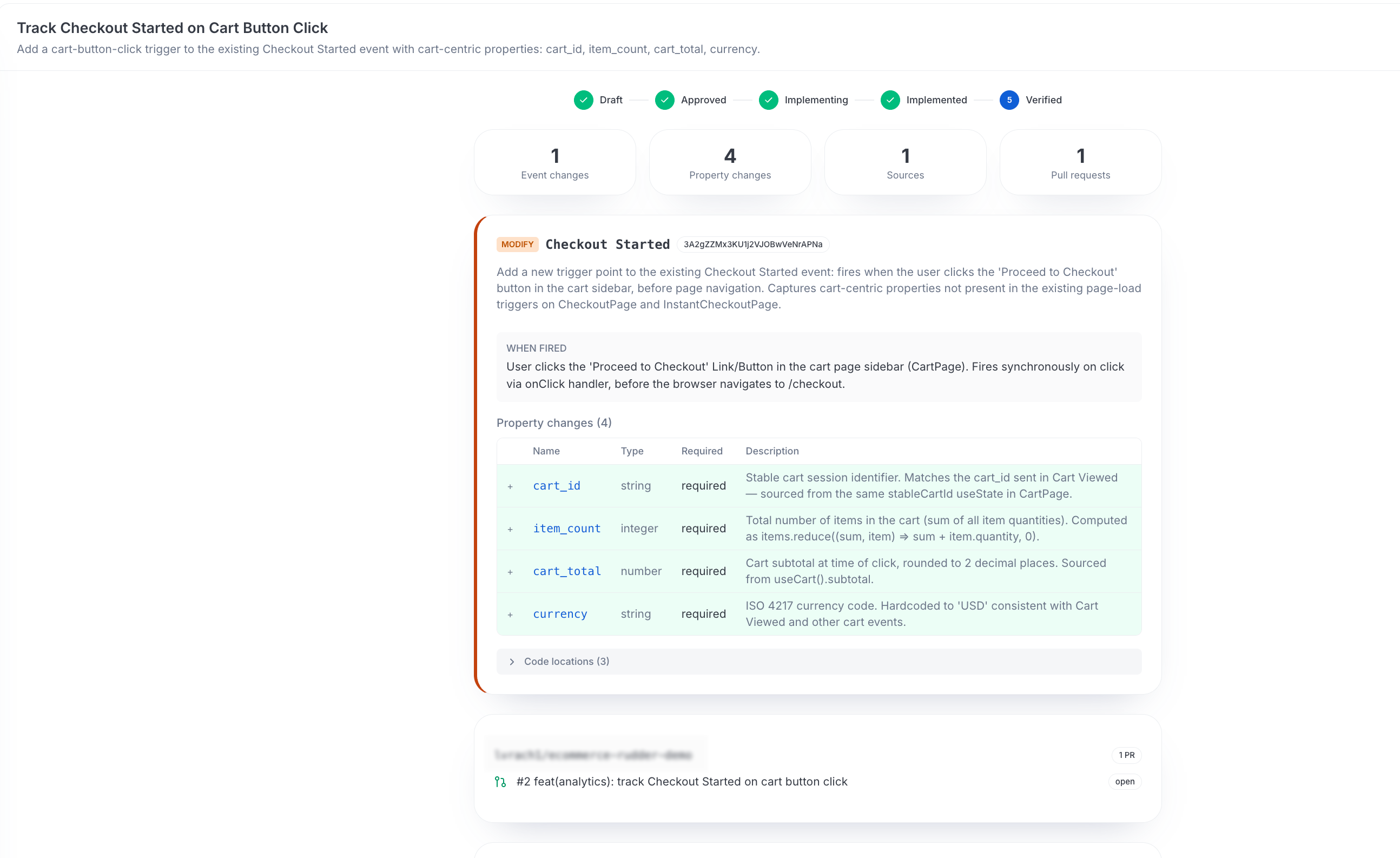

The plan lifecycle

A measurement plan moves through clear states so you always know where it stands:

Why it is split this way

The agent proposes, a human approves, and a background worker implements. This process keeps a person in the loop before any code reaches a repository.

• From chat, the agent can only save and manage a plan — it can’t set one running.
• Turning an approved plan into real code is a separate, human-gated step. Someone must explicitly select Generate PRs to start the instrumentation agent.
• Every change lands as a pull request you review and merge, not a commit pushed straight to your main branch.

How Lookout finds the right repository

A measurement plan needs a connected GitHub repository for the instrumentation agent to open pull requests against, and a source-to-repository mapping so Lookout knows which repository to use.

GitLab repositories are not supported currently for measurement plan PR generation.

To open a pull request, Lookout needs to know which repository instruments a given source. That comes from your source-to-repository mappings — each RudderStack source is mapped to the GitHub or GitLab repository (and subfolder) where its events are instrumented.

When you ask to capture a new event, Lookout identifies the source the event belongs to, looks up the repository mapped to it, and targets the instrumentation pull request at the right codebase — without you having to specify where the code lives.
