How to Trigger Reverse ETL Syncs from dbt Cloud

Trigger Reverse ETL syncs when dbt Cloud jobs complete by implementing webhooks with the RudderStack RETL Connections API.

9 minute read

This guide shows you how to automatically trigger RudderStack Reverse ETL syncs when your dbt Cloud jobs complete.

Overview

You can automatically trigger RudderStack Reverse ETL syncs whenever your dbt Cloud jobs complete, ensuring your downstream destinations always get fresh, transformed data without manual intervention or arbitrary CRON schedules.

This integration uses dbt Cloud webhooks to notify a middleware endpoint when jobs complete. Your middleware then calls the RudderStack RETL Connections API to start a sync.

Integration architecture

The following steps summarize the integration flow:

dbt Cloud job completes successfully.
dbt Cloud sends a POST request (without authentication) with a fixed payload to your middleware endpoint.
Your middleware receives the webhook and checks for runStatus === "Success".
Middleware calls the RudderStack Reverse ETL Connections API with the Authorization: Bearer <token> header.
RudderStack sync runs with fresh data from your warehouse.

Prerequisites

Before you begin, make sure you have the following:

dbt Cloud account with Team or Enterprise plan
Account Admin, Admin, or Developer permissions in dbt Cloud
RudderStack workspace with a Reverse ETL connection configured
Ability to deploy a webhook handler (AWS Lambda, GCP Cloud Function, Cloudflare Worker, or similar)

1. Get your RudderStack credentials

This section lists the steps to get the RudderStack credentials required for the integration.

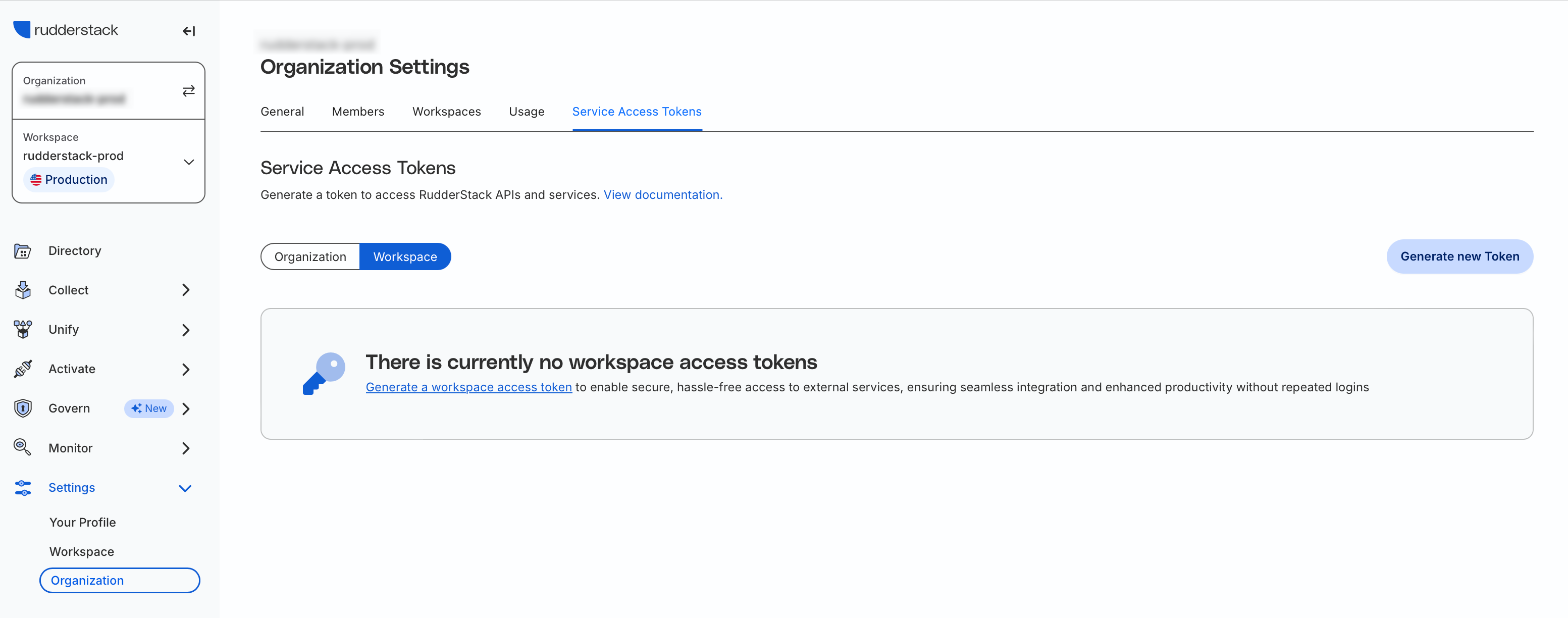

Generate a Service Access Token

Go to RudderStack Dashboard > Settings > Organization > Service Access Tokens.
Select Workspace and click Generate new Token.

Assign a valid, descriptive name for the token and select a relevant workspace (applicable for a multi-workspace setup).
Under Token role and permissions, select Editor or Admin, depending on your requirement.
Click Generate.

Note and secure the token value. It will not be visible again once you click Close.

See the Service Access Tokens guide for more details on generating a workspace-level Service Access Token.

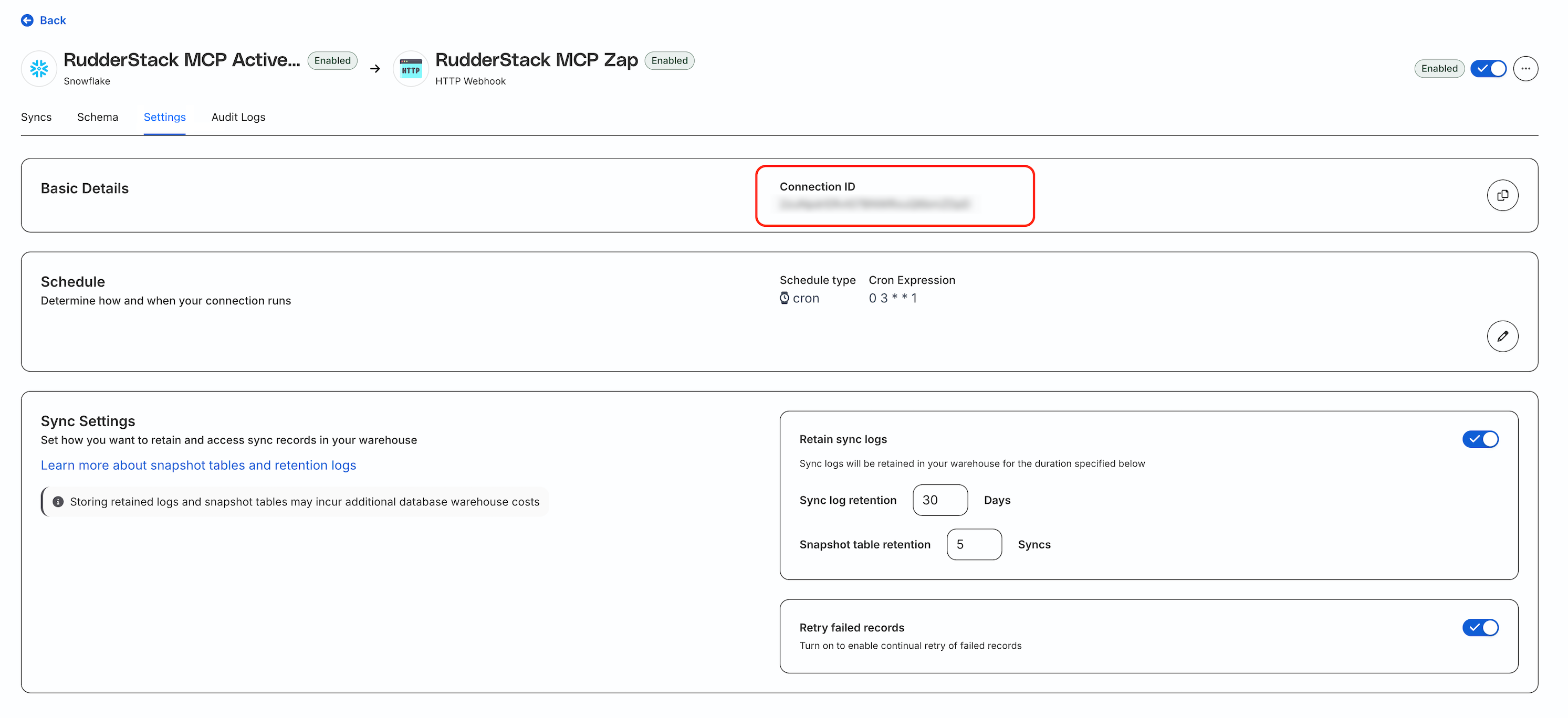

Get your Reverse ETL connection ID

Go to RudderStack Dashboard > Collect > Sources.
Select your Reverse ETL source.
Click on the connection (source-destination pair) you want to trigger.
Go to the Settings tab and copy the Connection ID from the URL or connection details.

2. dbt Cloud webhook payload

When a job completes, dbt Cloud sends a POST request with a payload similar to the one shown below:

{
  "accountId": 12345,
  "eventId": "wev_2KkC78P4Qux7RSn8XeZ2o2pdvcU",
  "timestamp": "2026-01-28T15:59:37.985673361Z",
  "eventType": "job.run.completed",
  "webhookId": "wsu_2OOKhFqtZGSLkMezu3SUujcF0Zj",
  "webhookName": "RudderStack rETL Sync",
  "data": {
    "jobId": "123",
    "jobName": "Daily Transform Job",
    "runId": "456",
    "environmentId": "789",
    "environmentName": "Production",
    "dbtVersion": "1.7.0",
    "projectName": "Analytics Project",
    "projectId": "101112",
    "runStatus": "Success",
    "runStatusCode": 10,
    "runStatusMessage": "",
    "runReason": "Scheduled",
    "runStartedAt": "2026-01-28T14:59:37.985673814Z",
    "runFinishedAt": "2026-01-28T15:59:37.985673955Z"
  }
}

Key fields to reference

Field	Notes
`data.runStatus`	Check for `"Success"` before triggering the sync
`data.runStatusCode`	`10` indicates Success, `20` indicates Error
`data.jobId`	Use this to map specific dbt jobs to specific Reverse ETL connections

Important consideration
dbt Cloud sends a simple POST request with a fixed JSON payload. You cannot add custom headers, authentication, or modify the payload structure. This is why you need middleware — your middleware receives this POST request, then makes an authenticated call to RudderStack’s Reverse ETL Connections API with the required Authorization: Bearer <token> header.

3. Create the webhook handler

Choose a platform that best fits your infrastructure. The following examples show implementations for common serverless platforms.

AWS Lambda (Node.js)

// index.js
const https = require('https');

// Configuration - use environment variables
const RUDDERSTACK_API_TOKEN = process.env.RUDDERSTACK_API_TOKEN;
const RETL_CONNECTION_ID = process.env.RETL_CONNECTION_ID;

// RudderStack API base URL (use api.eu.rudderstack.com for EU)
const RS_API_BASE = 'api.rudderstack.com';

exports.handler = async (event) => {
  try {
    // Parse the dbt Cloud webhook payload
    const body = JSON.parse(event.body);

    console.log('Received dbt Cloud webhook:', JSON.stringify(body, null, 2));

    // Check if the job completed successfully
    const runStatus = body.data?.runStatus;

    if (runStatus !== 'Success') {
      console.log(`Job did not succeed (status: ${runStatus}). Skipping sync.`);
      return {
        statusCode: 200,
        body: JSON.stringify({
          message: 'Skipped - job not successful',
          status: runStatus
        })
      };
    }

    // Trigger RudderStack RETL sync
    const syncResult = await triggerRETLSync();

    return {
      statusCode: 200,
      body: JSON.stringify({
        message: 'RETL sync triggered successfully',
        syncId: syncResult.syncId
      })
    };

  } catch (error) {
    console.error('Error processing webhook:', error);
    return {
      statusCode: 500,
      body: JSON.stringify({
        error: error.message
      })
    };
  }
};

function triggerRETLSync() {
  return new Promise((resolve, reject) => {
    const postData = JSON.stringify({
      syncType: 'incremental' // or 'full' for full sync
    });

    const options = {
      hostname: RS_API_BASE,
      port: 443,
      path: `/v2/retl-connections/${RETL_CONNECTION_ID}/start`,
      method: 'POST',
      headers: {
        'Content-Type': 'application/json',
        'Authorization': `Bearer ${RUDDERSTACK_API_TOKEN}`,
        'Content-Length': Buffer.byteLength(postData)
      }
    };

    const req = https.request(options, (res) => {
      let data = '';
      res.on('data', chunk => data += chunk);
      res.on('end', () => {
        if (res.statusCode === 200) {
          resolve(JSON.parse(data));
        } else {
          reject(new Error(`API returned ${res.statusCode}: ${data}`));
        }
      });
    });

    req.on('error', reject);
    req.write(postData);
    req.end();
  });
}

Set the following environment variables — replace the placeholders with the actual values obtained in Step 1:

RUDDERSTACK_API_TOKEN=<SERVICE_ACCESS_TOKEN>
RETL_CONNECTION_ID=<REVERSE_ETL_CONNECTION_ID>

GCP Cloud Function (Python)

# main.py
import os
import json
import requests
import functions_framework

RUDDERSTACK_API_TOKEN = os.environ.get('RUDDERSTACK_API_TOKEN')
RETL_CONNECTION_ID = os.environ.get('RETL_CONNECTION_ID')

# Use api.eu.rudderstack.com for EU region
RS_API_BASE = 'https://api.rudderstack.com/v2'

@functions_framework.http
def handle_dbt_webhook(request):
  """Handle incoming dbt Cloud webhook and trigger RETL sync."""

  # Parse webhook payload
  try:
    payload = request.get_json()
    print(f"Received dbt webhook: {json.dumps(payload, indent=2)}")
  except Exception as e:
    return (f'Invalid JSON: {e}', 400)

  # Check job status
  run_status = payload.get('data', {}).get('runStatus')

  if run_status != 'Success':
    print(f"Job status is '{run_status}', skipping sync")
    return (json.dumps({
      'message': 'Skipped - job not successful',
      'status': run_status
    }), 200)

  # Trigger RETL sync with Bearer authentication
  try:
    response = requests.post(
      f'{RS_API_BASE}/retl-connections/{RETL_CONNECTION_ID}/start',
      headers={
        'Authorization': f'Bearer {RUDDERSTACK_API_TOKEN}',
        'Content-Type': 'application/json'
      },
      json={
        'syncType': 'incremental' # or 'full'
      }
    )
    response.raise_for_status()
    result = response.json()

    print(f"RETL sync triggered: {result}")
    return (json.dumps({
      'message': 'RETL sync triggered successfully',
      'syncId': result.get('syncId')
    }), 200)

  except requests.exceptions.RequestException as e:
    print(f"Error triggering sync: {e}")
    return (json.dumps({
      'error': str(e)
    }), 500)

Set the following environment variables — replace the placeholders with the actual values obtained in Step 1:

RUDDERSTACK_API_TOKEN=<SERVICE_ACCESS_TOKEN>
RETL_CONNECTION_ID=<REVERSE_ETL_CONNECTION_ID>

Then, update requirements.txt with the following dependencies:

functions-framework==3.*
requests==2.*

Cloudflare Worker (JavaScript)

// worker.js
const RS_API_BASE = 'https://api.rudderstack.com/v2';

export default {
  async fetch(request, env) {
    // Only accept POST requests
    if (request.method !== 'POST') {
      return new Response('Method not allowed', {
        status: 405
      });
    }

    try {
      const payload = await request.json();
      console.log('Received dbt webhook:', JSON.stringify(payload));

      // Check job status
      const runStatus = payload.data?.runStatus;

      if (runStatus !== 'Success') {
        return Response.json({
          message: 'Skipped - job not successful',
          status: runStatus
        });
      }

      // Trigger RudderStack RETL sync
      const syncResponse = await fetch(
        `${RS_API_BASE}/retl-connections/${env.RETL_CONNECTION_ID}/start`, {
          method: 'POST',
          headers: {
            'Authorization': `Bearer ${env.RUDDERSTACK_API_TOKEN}`,
            'Content-Type': 'application/json'
          },
          body: JSON.stringify({
            syncType: 'incremental'
          })
        }
      );

      if (!syncResponse.ok) {
        throw new Error(`API returned ${syncResponse.status}`);
      }

      const result = await syncResponse.json();

      return Response.json({
        message: 'RETL sync triggered successfully',
        syncId: result.syncId
      });

    } catch (error) {
      console.error('Error:', error);
      return Response.json({
        error: error.message
      }, {
        status: 500
      });
    }
  }
};

Set the environment variables in wrangler.toml — replace the placeholders with the actual values obtained in Step 1:

[vars]
RETL_CONNECTION_ID = "<REVERSE_ETL_CONNECTION_ID>"

# Use secrets for the Service Access Token:
# wrangler secret put RUDDERSTACK_API_TOKEN

4. Deploy your webhook handler

This section lists the steps to deploy the webhook handler depending on your chosen platform.

AWS Lambda

Create a new Lambda function with Node.js 18.x or later.
Paste the code and set the environment variables.
Create an API Gateway trigger (HTTP API).
Note the endpoint URL for the next step.

GCP Cloud Function

gcloud functions deploy dbt-rudderstack-webhook \
  --runtime python311 \
  --trigger-http \
  --allow-unauthenticated \
  --set-env-vars RUDDERSTACK_API_TOKEN=xxx,RETL_CONNECTION_ID=xxx

Cloudflare Worker

wrangler deploy

5. Configure the dbt Cloud webhook

In dbt Cloud, go to Account > Account Settings in the left sidebar.
Select Webhooks under the Settings menu.
Click Create Webhook.
Configure the webhook with the following details:

Setting	Notes
Webhook name	Name it as `RudderStack rETL Sync`
Description	Enter a brief description of the webhook, for example, `Triggers RudderStack Reverse ETL sync on job completion`
Events	Select `Run completed` (optionally, `Run started` or `Run errored`)
Jobs	Select the specific jobs, for example, `Salesforce Utilisation Model`
Endpoint	Enter your deployed middleware URL, for example, `https://your-function.cloud.provider.com`

Click Save.
Use the Test Endpoint button to verify your middleware is reachable.
Finally, click Save.

6. Test the integration

This section lists the various options to test your integration.

Test the webhook handler directly

curl -X POST https://your-webhook-url.com \
  -H "Content-Type: application/json" \
  -d '{
    "eventType": "job.run.completed",
    "data": {
      "jobId": "12345",
      "jobName": "Test Job",
      "runStatus": "Success"
    }
  }'

Expected response:

{
  "message": "RETL sync triggered successfully",
  "syncId": "abc123..."
}

Test from dbt Cloud

Go to your dbt Cloud job.
Click Run Now.
Wait for the job to complete.
Check the following:
- Your webhook handler logs
- In your RudderStack dashboard, go to your Reverse ETL connection and click the Syncs tab

You should see a new sync entry with the timestamp matching your dbt Cloud job completion time.

7. (Optional) Test the integration locally with ngrok

Before deploying to production, test the entire flow locally using ngrok to expose your local server to dbt Cloud.

1. Install ngrok

# macOS
brew install ngrok

# Or download from https://ngrok.com/download

2. Create a local server

Create a file named webhook_server.py:

from flask import Flask, request, jsonify
import requests
import os

app = Flask(__name__)

RUDDERSTACK_API_TOKEN = os.environ.get('RUDDERSTACK_API_TOKEN')
RETL_CONNECTION_ID = os.environ.get('RETL_CONNECTION_ID')
RS_API_BASE = 'https://api.rudderstack.com/v2'

@app.route('/webhook', methods=['POST'])
def handle_webhook():
  payload = request.get_json()
  print(f"Received dbt Cloud webhook: {payload}")

  run_status = payload.get('data', {}).get('runStatus')

  if run_status != 'Success':
    print(f"Job status is '{run_status}', skipping sync")
    return jsonify({
      'message': 'Skipped',
      'status': run_status
    }), 200

  # Trigger RETL sync
  response = requests.post(
    f'{RS_API_BASE}/retl-connections/{RETL_CONNECTION_ID}/start',
    headers={
      'Authorization': f'Bearer {RUDDERSTACK_API_TOKEN}',
      'Content-Type': 'application/json'
    },
    json={
      'syncType': 'incremental'
    }
  )

  print(f"RudderStack API response: {response.status_code} - {response.text}")

  if response.ok:
    return jsonify({
      'message': 'Sync triggered',
      'result': response.json()
    }), 200
  else:
    return jsonify({
      'error': response.text
    }), 500

if __name__ == '__main__':
  app.run(port=5000, debug=True)

3. Run the local server

# Install dependencies
pip install flask requests

# Set environment variables
export RUDDERSTACK_API_TOKEN="your_service_access_token"
export RETL_CONNECTION_ID="your_connection_id"

# Start the server
python webhook_server.py

4. Expose with ngrok

In a new terminal:

ngrok http 5000

ngrok outputs something like:

Forwarding    https://ed94845ef6e0.ngrok-free.app -> http://localhost:5000

5. Configure dbt Cloud

Copy the ngrok HTTPS URL, for example, https://ed94845ef6e0.ngrok-free.app.
In dbt Cloud, go to Settings > Webhooks.
Set the Endpoint to https://ed94845ef6e0.ngrok-free.app/webhook.
Click Test Endpoint to verify connectivity.
Run a dbt job and watch your local terminal for the webhook payload.

6. Verify the flow

In your local terminal, you should see the incoming dbt Cloud webhook payload and the RudderStack API response confirming the sync was triggered successfully.

Check the RudderStack dashboard to confirm the sync started.

Tip: ngrok free tier URLs change each time you restart. For persistent URLs, use ngrok’s paid plan or deploy to a cloud function for final testing.

Troubleshooting

Problem	Solution
Webhook not firing	Check the dbt Cloud webhook configuration and ensure the correct job is selected
401 Unauthorized from RudderStack	Verify the Service Access Token has the correct permissions and is not expired
404 Not Found	Check the Connection ID is correct and the connection exists in your workspace
409 Conflict	A sync is already running — wait for it to complete before triggering another sync
Sync triggers but no data flows	Check your Reverse ETL source query and field mappings in the connection configuration

API endpoints for debugging

Check sync status

curl -X GET "https://api.rudderstack.com/v2/retl-connections/{connectionId}/syncs" \
  -H "Authorization: Bearer {token}"

Stop a running sync

curl -X POST "https://api.rudderstack.com/v2/retl-connections/{connectionId}/stop" \
  -H "Authorization: Bearer {token}"

See more

Help and support

For any questions or support, contact RudderStack support.

Was this page helpful?

Glad to hear it! Please tell us how we can improve.

Sorry to hear that. Please tell us how we can improve.

Questions? Contact us by Email or on Slack
